DOUBLE GLAZED SMART PRIVACY GLASS

The latest generation of DOUBLE GLAZED SMART PRIVACY GLASS panels combines the benefits of improved thermal performance with the immediate control over privacy/security.

This durable solid state technology replaces the need for old fashioned blinds or curtains offering greater control and comfort within any room. The (PDLC) switchable layer is coated down on the inner surface of one panel of glass, then this is combined with a second panel of glass to form a sealed unit.

Our switchable DGU/IGU panels utilise a warm edge spacer bar with an argon filled air gap in between to offer greater insulation and performance.

Depending upon the customer requirements we offer a variety of glass options e.g. low iron, low E coatings to provide the most efficient DGU/IGU panels on the market today.

A simple ON - OFF mode switches the glass from being clear (transparent) to frosted (opaque). Three standard panel thicknesses are available 18mm, 24mm and 28mm (custom sizes upon request).This product is simple to install just like any standard double glazed sealed unit.

Enjoy the benefits of insulated glass making your room warmer in the winter and cooler in the summer.
This energy saving product is completely solid state requiring no maintenance or special cleaning requirements.

Imagine living in a world which offers you complete control over your comfort/privacy/security all at the flick of a switch

RECOMMENDED APPLICATIONS

PRIVACY OR SECURITY GLASS

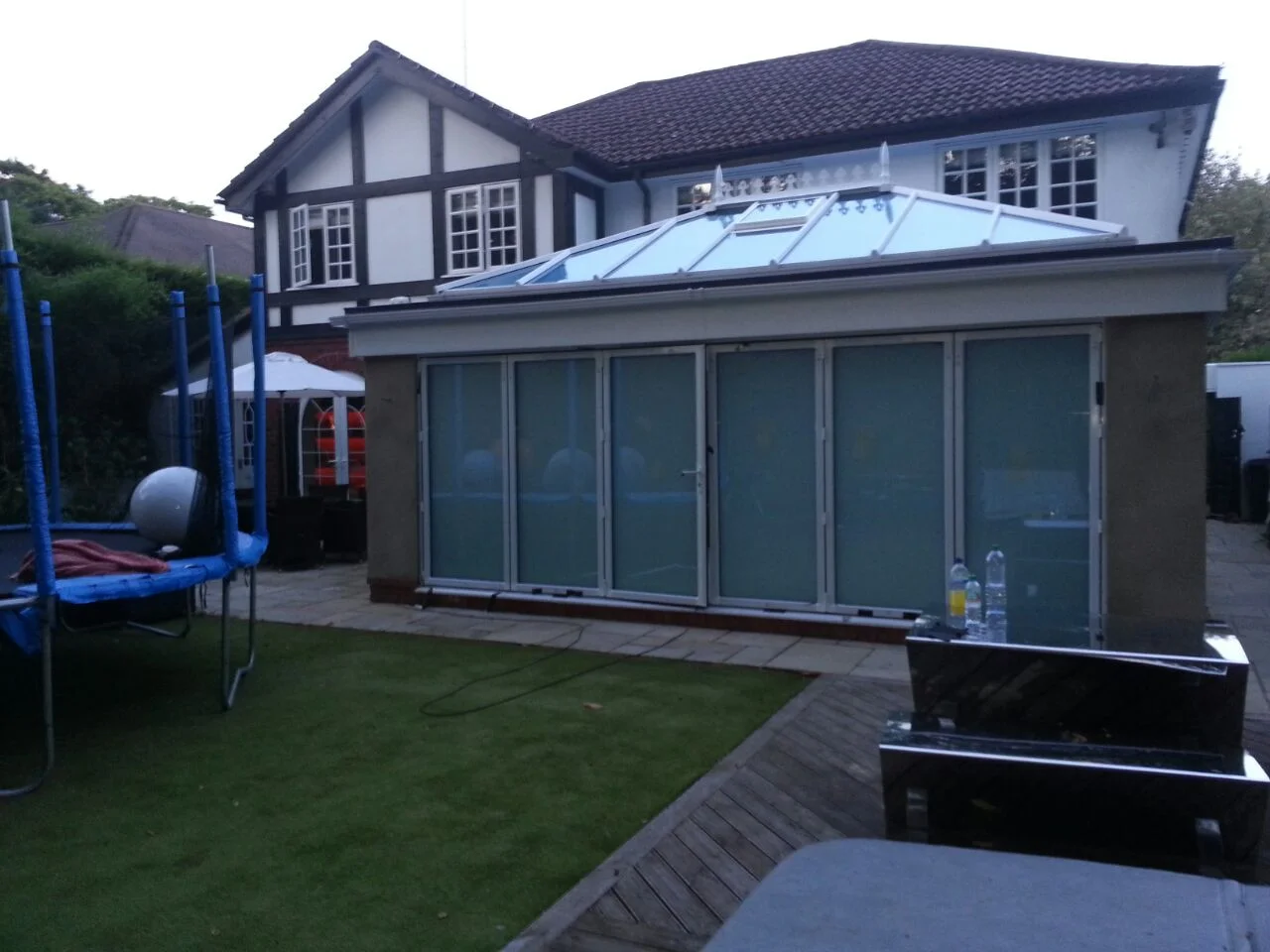

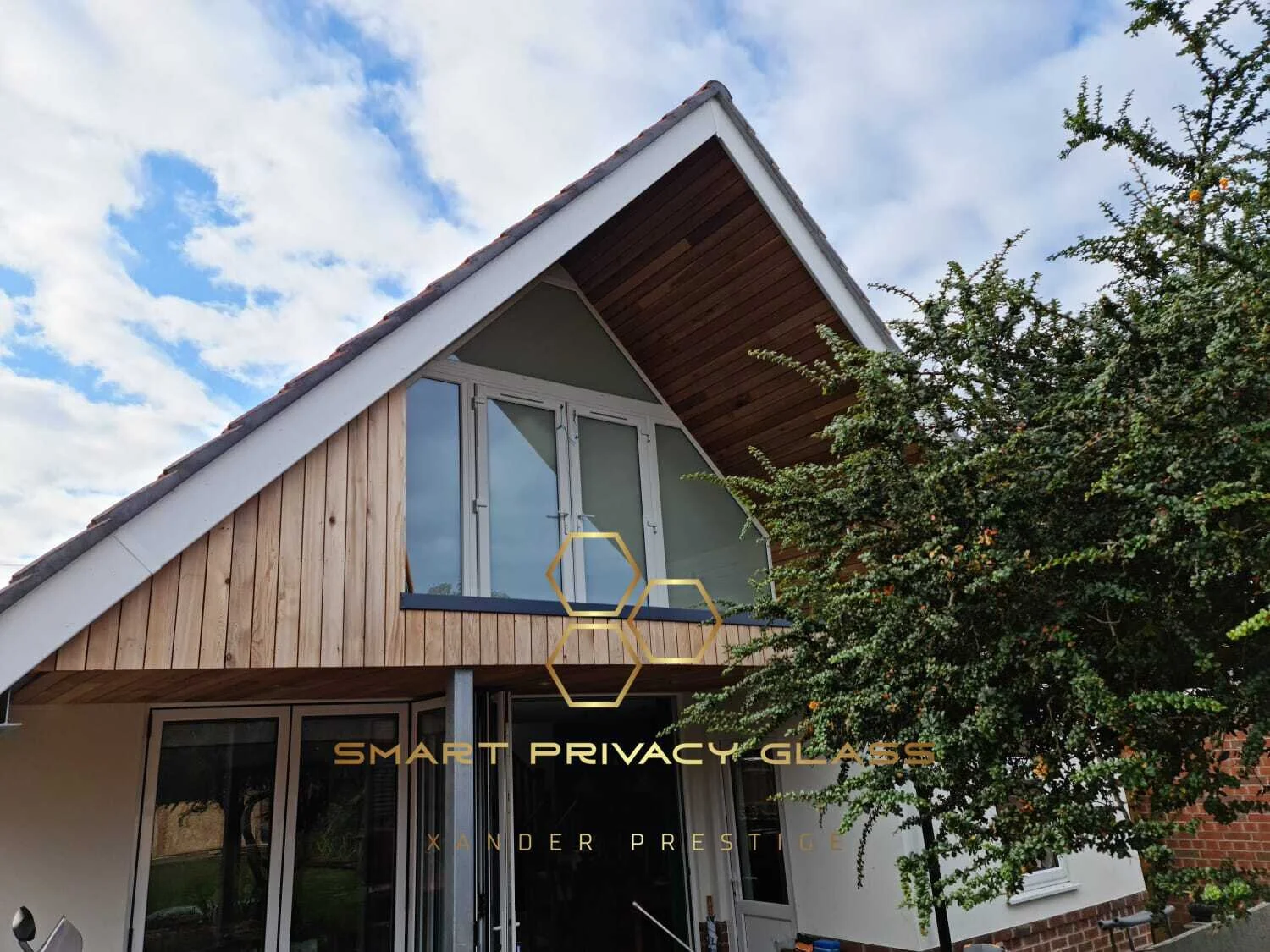

EXTERNAL GLAZING & WINDOWS

CONSERVATORIES OR SUN ROOMS

VISION PANELS & DOORS

SKYLIGHTS OR GLASS ROOFS

BATHROOMS & KITCHENS

REPLACEMENT BLINDS & CURTAINS

SHAPES AVAILABLE

MINIMUM & MAXIMUM SIZES PER PANE

MINIMUM 150mm x 150mm

MAXIMUM 1800mm x 5000mm

WHAT IS REQUIRED & PROVIDED

POWER

WE PROVIDE YOU WITH A 110V/240V TRANSFORMER WITH POWER SURGE PROTECTION WHICH CONNECTS TO THE GLASS BY WIRES ATTACHED TO

YOUR 13 AMP FUSED SPUR

CONTROLS

WE PROVIDE YOU WITH AN I-REMOTE WITH WIRELESS RECEIVER TO CONTROL THE GLASS FROM UP TO 10 METRES AWAY. YOU CAN ALSO HAVE A

WIRELESS OR HARDWIRED SWITCH IF YOU CHOOSE

LEAD TIMES

INCREDIBLE FAST 4 WEEK LEAD TIMES FROM ORDER AS STANDARD OR PREMIUM 2 WEEK FAST TRACK OPTION - YOU WON'T FIND IT FASTER

SPECIFICATION

Power - 110VAC

Frequency 50/60 hz

Current - 0.1 amperes per m2


Power 7 watts per m2

Switching - less than 1 second

Thickness - various

Light Transmittance - ON 75% -
OFF 67%

Haze Coefficient - On (3%) Off
(87%)

Test Procedures

Tested over 3 million switches

High temperatures - >70 degrees C (over 14 days)

High temperature / humidity - >50 degrees C / 95% RH (over 14 days)

Cold temperatures - minus 20 degrees C (over 14 days)

UV filtering - 99% (within 1 year)

Haze Coefficient - On (3%) Off (87%)
